N° 7159MOT

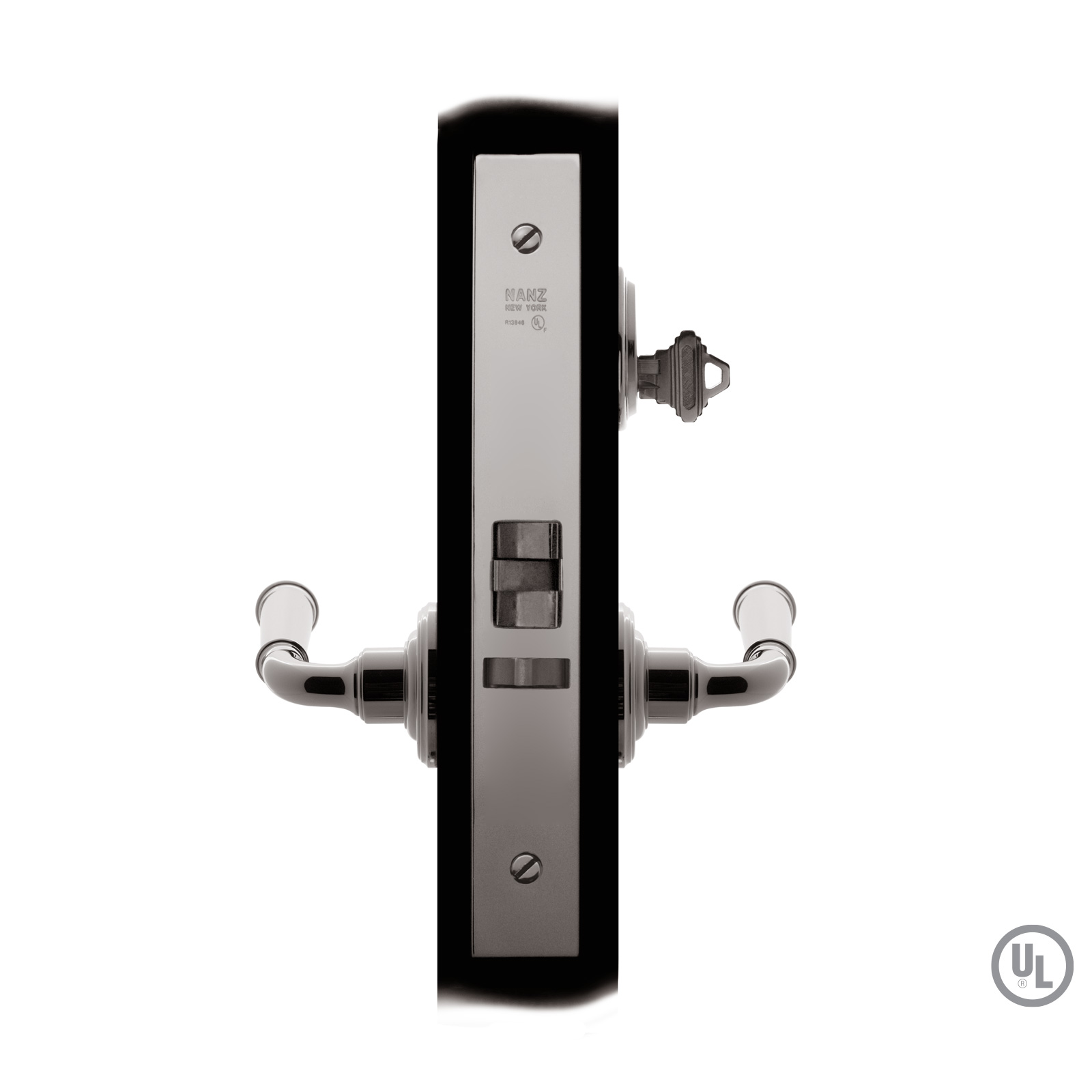

The No 7159MOT full mortise motor drive electrified Entry lockset, typically specified for storerooms and wine cellars, is operated by a key only outside and handle only inside. This lockset can be special ordered with lock out privacy, allowing a thumbturn on the interior to over ride the electric function for added security. The voltage and security setting can be set in the field.  This lockset incorporates an adjustable bevel faceplate and a three-piece anti-friction latch that is deadlocked by the auxiliary latch. This lockset is suitable for doors 1-3/4” thick or greater, and has a faceplate measuring 8” x 1-1/4”. When ordering, specify knob or lever function, and backset of 2-1/2”, 2-3/4”, 3-3/4”, 5”, or 6”. A strikeplate and wrought metal dustbox are provided. The lockset can be delivered with any Nanz handle and cylinder. All Nanz plated and patinated finishes are available.

UL Logo

The tearsheet will provide a printable image, line drawing and description of this product. Email tearsheet
